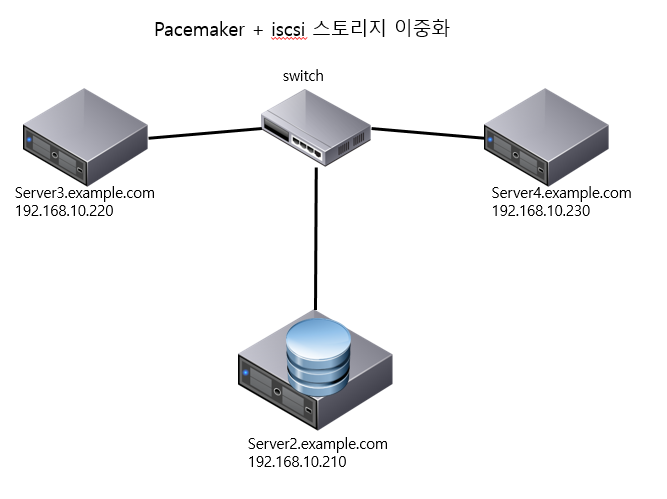

############### SERVER 2 세팅 #############################
[root@server2 ~]# lsscsi
[root@server2 ~]# find /sys -name scan
/sys/module/scsi_mod/parameters/scan
[root@server2 ~]# echo "- - -" >> /sys/devices/pci0000:00/0000:00:10.0/host0/scsi_host/host0/scan
[root@server2 ~]# lsscsi
[0:0:1:0] disk VMware, VMware Virtual S 1.0 /dev/sdb
[root@server2 ~]#
[root@server2 ~]#
[root@server2 ~]# fdisk /dev/sdb
Welcome to fdisk (util-linux 2.32.1).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.
Device does not contain a recognized partition table.
Created a new DOS disklabel with disk identifier 0xaf2c7031.
Command (m for help): n
Partition type
p primary (0 primary, 0 extended, 4 free)
e extended (container for logical partitions)
Select (default p): p
Partition number (1-4, default 1):
First sector (2048-2097151, default 2048):
Last sector, +sectors or +size{K,M,G,T,P} (2048-2097151, default 2097151):
Created a new partition 1 of type 'Linux' and of size 1023 MiB.
Command (m for help): w
The partition table has been altered.
Calling ioctl() to re-read partition table.
Syncing disks.
[root@server2 ~]# dnf -y install lvm2 targetcli
[root@server2 ~]#
[root@server2 ~]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
sda 8:0 0 100G 0 disk
├─sda1 8:1 0 1G 0 part /boot
└─sda2 8:2 0 99G 0 part
├─cl-root 253:0 0 91.9G 0 lvm /
├─cl-swap 253:1 0 2.1G 0 lvm [SWAP]
└─cl-home 253:2 0 5G 0 lvm /home
sdb 8:16 0 1G 0 disk
└─sdb1 8:17 0 1023M 0 part
[root@server2 ~]#
[root@server2 ~]#
[root@server2 ~]#
[root@server2 ~]# targetcli
Warning: Could not load preferences file /root/.targetcli/prefs.bin.
targetcli shell version 2.1.53
Copyright 2011-2013 by Datera, Inc and others.
For help on commands, type 'help'.
/> cd /backstores/block
/backstores/block> create block1 /dev/sdb1
Created block storage object block1 using /dev/sdb1.
/backstores/block> cd ../..
/> cd iscsi
/iscsi> create iqn.2021-01.com.example.server2:disk1
Created target iqn.2021-01.com.example.server2:disk1.
Created TPG 1.
Global pref auto_add_default_portal=true
Created default portal listening on all IPs (0.0.0.0), port 3260.
/iscsi> cd iqn.2021-01.com.example.server2:disk1/tpg1/acls
/iscsi/iqn.20...sk1/tpg1/acls> create iqn.2021-01.com.example.server3:server3
Created Node ACL for iqn.2021-01.com.example.server3:server3
/iscsi/iqn.20...sk1/tpg1/acls> cd ..
/iscsi/iqn.20...r2:disk1/tpg1> cd luns
/iscsi/iqn.20...sk1/tpg1/luns> create /backstores/block/block1
Created LUN 0.
Created LUN 0->0 mapping in node ACL iqn.2021-01.com.example.server3:server3
/iscsi/iqn.20...sk1/tpg1/luns> cd ..
/iscsi/iqn.20...r2:disk1/tpg1> cd portals/
/iscsi/iqn.20.../tpg1/portals> delete 0.0.0.0 3260
Deleted network portal 0.0.0.0:3260
/iscsi/iqn.20.../tpg1/portals> create 192.168.10.220 3260
Using default IP port 3260
Created network portal 192.168.10.220:3260.
/iscsi/iqn.20.../tpg1/portals> create 192.168.10.230 3260
Using default IP port 3260
Created network portal 192.168.10.230:3260.
/iscsi/iqn.20.../tpg1/portals>
/iscsi/iqn.20.../tpg1/portals> ls
o- portals ...................................................................................... [Portals: 2]
o- 192.168.10.220:3260 ................................................................................ [OK]
o- 192.168.10.230:3260 ................................................................................ [OK]
/iscsi/iqn.20.../tpg1/portals> exit
Global pref auto_save_on_exit=true
Configuration saved to /etc/target/saveconfig.json
[root@server2 ~]# targetcli ls
o- / ................................................................................................... [...]
o- backstores ........................................................................................ [...]
| o- block ............................................................................ [Storage Objects: 1]
| | o- block1 ................................................. [/dev/sdb1 (1023.0MiB) write-thru activated]
| | o- alua ............................................................................. [ALUA Groups: 1]
| | o- default_tg_pt_gp ................................................. [ALUA state: Active/optimized]
| o- fileio ........................................................................... [Storage Objects: 0]
| o- pscsi ............................................................................ [Storage Objects: 0]
| o- ramdisk .......................................................................... [Storage Objects: 0]
o- iscsi ...................................................................................... [Targets: 1]
| o- iqn.2021-01.com.example.server2:disk1 ....................................................... [TPGs: 1]
| o- tpg1 ......................................................................... [no-gen-acls, no-auth]
| o- acls .................................................................................... [ACLs: 1]
| | o- iqn.2021-01.com.example.server3:server3 ........................................ [Mapped LUNs: 1]
| | o- mapped_lun0 .......................................................... [lun0 block/block1 (rw)]
| o- luns .................................................................................... [LUNs: 1]
| | o- lun0 .............................................. [block/block1 (/dev/sdb1) (default_tg_pt_gp)]
| o- portals .............................................................................. [Portals: 2]
| o- 192.168.10.220:3260 ........................................................................ [OK]
| o- 192.168.10.230:3260 ........................................................................ [OK]
o- loopback ................................................................................... [Targets: 0]
[root@server2 ~]# firewall-cmd --permanent --add-port=3260/tcp
[root@server2 ~]# firewall-cmd --reload
[root@server2 ~]# firewall-cmd --list-all
[root@server2 ~]# targetcli
targetcli shell version 2.1.53
Copyright 2011-2013 by Datera, Inc and others.
For help on commands, type 'help'.
/iscsi/iqn.20.../tpg1/portals> exit
Global pref auto_save_on_exit=true
Last 10 configs saved in /etc/target/backup/.
Configuration saved to /etc/target/saveconfig.json
[root@server2 ~]# targetcli ls
o- / ................................................................................................... [...]
o- backstores ........................................................................................ [...]
| o- block ............................................................................ [Storage Objects: 1]
| | o- block1 ................................................. [/dev/sdb1 (1023.0MiB) write-thru activated]
| | o- alua ............................................................................. [ALUA Groups: 1]
| | o- default_tg_pt_gp ................................................. [ALUA state: Active/optimized]
| o- fileio ........................................................................... [Storage Objects: 0]
| o- pscsi ............................................................................ [Storage Objects: 0]
| o- ramdisk .......................................................................... [Storage Objects: 0]
o- iscsi ...................................................................................... [Targets: 1]
| o- iqn.2021-01.com.example.server2:disk1 ....................................................... [TPGs: 1]
| o- tpg1 ......................................................................... [no-gen-acls, no-auth]
| o- acls .................................................................................... [ACLs: 1]
| | o- iqn.2021-01.com.example.server3:server3 ........................................ [Mapped LUNs: 1]
| | o- mapped_lun0 .......................................................... [lun0 block/block1 (rw)]
| o- luns .................................................................................... [LUNs: 1]
| | o- lun0 .............................................. [block/block1 (/dev/sdb1) (default_tg_pt_gp)]
| o- portals .............................................................................. [Portals: 2]
| o- 192.168.10.220:3260 ........................................................................ [OK]
| o- 192.168.10.230:3260 ........................................................................ [OK]
o- loopback ................................................................................... [Targets: 0]
[root@server2 ~]#
[root@server2 ~]# targetcli
/> saveconfig
Last 10 configs saved in /etc/target/backup/.
Configuration saved to /etc/target/saveconfig.json
/> exit
Global pref auto_save_on_exit=true
Configuration saved to /etc/target/saveconfig.json
[root@server2 ~]# reboot
###############################################################
################### SERVER 3 세팅 ###########################
centos 8 에서는 dlm 이 없어 dlm 리빌드함
[root@server3 ~]# yum install yum-utils
[root@server3 ~]# yumdownloader --source dlm
[root@server3 ~]# yum -y install rpm-build libxml2-devel systemd-devel glibc-kernheaders gcc make
[root@server3 ~]# dnf config-manager --set-enabled ha
[root@server3 ~]# dnf -y install pacemaker fence-agents-all gfs2-utils pcp-zeroconf corosynclib-devel pacemaker-libs-devel
[root@server3 ~]# rpmbuild --rebuild dlm-4.0.9-3.el8.src.rpm
[root@server3 ~]# rpm -ivh /root/rpmbuild/RPMS/x86_64/dlm-4.0.9-3.el8.x86_64.rpm --nodeps
[root@server3 ~]# dnf repolist
계정 암호 등록
[root@server3 ~]# passwd hacluster
Changing password for user hacluster.
New password:
BAD PASSWORD: The password contains the user name in some form
Retype new password:
passwd: all authentication tokens updated successfully.
pcs 설치
[root@server3 ~]# dnf -y install pcs
[root@server3 ~]# systemctl start pcsd
[root@server3 ~]# systemctl enable pcsd
방화벽 오픈
[root@server3 ~]# firewall-cmd --permanent --zone=public --add-port=2224/tcp
[root@server3 ~]# firewall-cmd --permanent --zone=public --add-port=5405/udp
[root@server3 ~]# firewall-cmd --permanent --zone=public --add-service=high-availability
[root@server3 ~]# firewall-cmd --reload
hosts 작성
[root@server3 ~]# vi /etc/hosts
192.168.10.210 server2.example.com
192.168.10.220 server3.example.com
192.168.10.230 server4.example.com
호스트 인증
[root@server3 ~]# pcs host auth server3.example.com server4.example.com
Username: hacluster
Password:
server4.example.com: Authorized
server3.example.com: Authorized
클러스터 셋업
[root@server3 ~]# pcs cluster setup cluster server3.example.com server4.example.com
싱크
[root@server3 ~]# pcs cluster sync
server3.example.com: Succeeded
server4.example.com: Succeeded
cluster 스타트
[root@server3 ~]# pcs cluster start --all
server3.example.com: Starting Cluster...
server4.example.com: Starting Cluster...
corosync 매핑 확인
[root@server3 ~]# corosync-cfgtool -s
Printing link status.
Local node ID 1
LINK ID 0
addr = 192.168.10.220
status:
nodeid 1: link enabled:1 link connected:1
nodeid 2: link enabled:1 link connected:1
조인 확인
[root@server3 ~]# corosync-cmapctl | grep -i members
runtime.members.1.config_version (u64) = 0
runtime.members.1.ip (str) = r(0) ip(192.168.10.220)
runtime.members.1.join_count (u32) = 1
runtime.members.1.status (str) = joined
runtime.members.2.config_version (u64) = 0
runtime.members.2.ip (str) = r(0) ip(192.168.10.230)
runtime.members.2.join_count (u32) = 1
runtime.members.2.status (str) = joined
[root@server3 ~]# pcs status corosync
[root@server3 ~]# crm_verify -L -V
(unpack_resources) error: Resource start-up disabled since no STONITH resources have been defined
(unpack_resources) error: Either configure some or disable STONITH with the stonith-enabled option
(unpack_resources) error: NOTE: Clusters with shared data need STONITH to ensure data integrity
[root@server3 ~]# pcs property set stonith-enabled=false
[root@server3 ~]# crm_verify -L -V
[root@server3 ~]#
[root@server3 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server4.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 19:29:49 2021
* Last change: Tue Jan 5 19:29:25 2021 by root via cibadmin on server3.example.com
* 2 nodes configured
* 0 resource instances configured
Node List:
* Online: [ server3.example.com server4.example.com ]
Full List of Resources:
* No resources
Daemon Status:
corosync: active/disabled
pacemaker: active/disabled
pcsd: active/enabled
[root@server3 ~]# systemctl enable pacemaker
Created symlink /etc/systemd/system/multi-user.target.wants/pacemaker.service → /usr/lib/systemd/system/pacemaker.service.
[root@server3 ~]# systemctl enable corosync
Created symlink /etc/systemd/system/multi-user.target.wants/corosync.service → /usr/lib/systemd/system/corosync.service.
[root@server3 ~]#
[root@server3 ~]# dnf -y install lvm2-lockd gfs2-utils
[root@server3 ~]# pcs property set no-quorum-policy=freeze
[root@server3 ~]# pcs property show
[root@server3 ~]# pcs resource create dlm --group locking ocf:pacemaker:controld op monitor interval=30s on-fail=ignore
[root@server3 ~]# pcs resource clone locking interleave=true
[root@server3 ~]# pcs resource create lvmlockd --group locking ocf:heartbeat:lvmlockd op monitor interval=30s on-fail=ignore
[root@server3 ~]# pcs status --full //아래 처럼 확인된다면
...
Failed Resource Actions:
* dlm_start_0 on server3.example.com 'not configured' (6):
....
server3, server4 모두 dlm enable, start 함
[root@server3 ~]# systemctl status dlm
[root@server3 ~]# systemctl start dlm
[root@server3 ~]# systemctl enable dlm
그래도 failed resource actions가 있다면 rebooting 함.(리부팅으로 해결함)
server3, server4 모두
[root@server3 ~]# vi /etc/lvm/lvm.conf
locking_type = 1
use_lvmlockd = 1
[root@server3 ~]# systemctl start lvmlockd
[root@server3 ~]# systemctl status lvmlockd
[root@server3 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server4.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 20:38:47 2021
* Last change: Tue Jan 5 20:38:43 2021 by root via cibadmin on server3.example.com
* 2 nodes configured
* 4 resource instances configured
Node List:
* Online: [ server3.example.com server4.example.com ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Started: [ server3.example.com server4.example.com ]
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
[root@server3 ~]# pcs property set stonith-enabled=false
-------------------------------------------------------
iscsi 세팅
[root@server3 ~]# dnf -y install iscsi-initiator-utils
[root@server3 ~]# vi /etc/iscsi/initiatorname.iscsi
InitiatorName=iqn.2021-01.com.example.server3:server3
InitiatorName=iqn.2021-01.com.example.server4:server4
[root@server3 ~]# systemctl restart iscsid
[root@server3 ~]# systemctl enable iscsid
[root@server3 ~]# iscsiadm -m discovery -t st -p 192.168.10.210
[root@server3 ~]# iscsiadm -m node -T iqn.2021-01.com.example.server2:disk1 -p 192.168.10.210:3260 -l
[root@server3 ~]# lsblk
아래처럼 error가 난다면...
[root@server3 ~]# pvcreate /dev/sdb1
WARNING: lvmlockd process is not running.
Global lock failed: check that lvmlockd is running.
[root@server3 ~]# fdisk /dev/sdb //fdisk 로 파티션 삭제하고 다시 파티셔닝함
d->n->p->엔터 엔터 엔터 -> w
[root@server3 ~]# lvmlockd
[root@server3 ~]# pvcreate /dev/sdb
WARNING: dos signature detected on /dev/sdb at offset 510. Wipe it? [y/n]: y
Wiping dos signature on /dev/sdb.
Physical volume "/dev/sdb" successfully created.
[root@server3 ~]# vgcreate --shared svg /dev/sdb
Volume group "svg" successfully created
VG svg starting dlm lockspace
Starting locking. Waiting until locks are ready...
server4에서만 적용
[root@server4 ~]# vgchange --lock-start svg
VG svg starting dlm lockspace
Starting locking. Waiting until locks are ready...
[root@server3 ~]# lvcreate --activate sy -l 100%FREE -n lv0 svg
Logical volume "lv0" created.
[root@server3 ~]# mkfs.gfs2 -j2 -p lock_dlm -t cluster:gfs2-server2 /dev/svg/lv0
/dev/svg/lv0 is a symbolic link to /dev/dm-3
This will destroy any data on /dev/dm-3
Are you sure you want to proceed? [y/n] y
Discarding device contents (may take a while on large devices): Done
Adding journals: Done
Building resource groups: Done
Creating quota file: Done
Writing superblock and syncing: Done
Device: /dev/svg/lv0
Block size: 4096
Device size: 0.99 GB (260096 blocks)
Filesystem size: 0.99 GB (260092 blocks)
Journals: 2
Journal size: 8MB
Resource groups: 6
Locking protocol: "lock_dlm"
Lock table: "cluster:gfs2-server2"
UUID: 361b1f8b-8bc7-42b6-9a47-26d2fee0cfe0
[root@server3 ~]# lsblk -f
NAME FSTYPE LABEL UUID MOUNTPOINT
sda
├─sda1 ext4 9a7d9b4c-7026-46ac-863d-07330fd8ceac /boot
└─sda2 LVM2_member 9rt6BW-jskp-jqK9-OasB-m3dE-zcHd-hbazk1
├─cl-root xfs 87a1ed4a-93a0-4642-b5d9-39900b923a11 /
├─cl-swap swap 9f8a7bc3-8cc1-4988-84dd-1fb8deb8422b [SWAP]
└─cl-home xfs 35b8c783-732f-4e72-8af1-06c4f0c64f48 /home
sdb LVM2_member GhX2jx-MdKd-7Yvq-DFwZ-Di4t-ErXh-qN6ucj
└─svg-lv0 gfs2 cluster:gfs2-server2 361b1f8b-8bc7-42b6-9a47-26d2fee0cfe0
[root@server3 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server4.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 21:42:13 2021
* Last change: Tue Jan 5 20:38:43 2021 by root via cibadmin on server3.example.com
* 2 nodes configured
* 4 resource instances configured
Node List:
* Online: [ server3.example.com server4.example.com ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Started: [ server3.example.com server4.example.com ]
Failed Resource Actions:
* lvmlockd_monitor_30000 on server4.example.com 'not running' (7): call=29, status='complete', exitreason='', last-rc-change='2021-01-05 21:13:49 +09:00', queued=0ms, exec=0ms
* lvmlockd_monitor_30000 on server3.example.com 'not running' (7): call=14, status='complete', exitreason='', last-rc-change='2021-01-05 21:14:19 +09:00', queued=0ms, exec=0ms
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
[root@server3 ~]#
[root@server3 ~]# pcs resource create sharedlv1 --group shared_vg1 ocf:heartbeat:LVM-activate lvname=lv0 vgname=svg activation_mode=shared vg_access_mode=lvmlockd
[root@server3 ~]# pcs resource clone shared_vg1 interleave=true
[root@server3 ~]# pcs constraint order start locking-clone then shared_vg1-clone
Adding locking-clone shared_vg1-clone (kind: Mandatory) (Options: first-action=start then-action=start)
같은 호스트에 적용
[root@server3 ~]# pcs constraint colocation add shared_vg1-clone with locking-clone
폴더 생성
[root@server3 ~]# mkdir /gfs2
fstab 처럼 적용
[root@server3 ~]# pcs resource create sharedfs1 --group shared_vg1 ocf:heartbeat:Filesystem device="/dev/svg/lv0" directory="/gfs2" fstype="gfs2" options=noatime op monitor interval=10s on-fail=ignore
확인
[root@server3 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server4.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 21:50:05 2021
* Last change: Tue Jan 5 21:49:55 2021 by root via cibadmin on server3.example.com
* 2 nodes configured
* 8 resource instances configured
Node List:
* Online: [ server3.example.com server4.example.com ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Started: [ server3.example.com server4.example.com ]
* Clone Set: shared_vg1-clone [shared_vg1]:
* Started: [ server3.example.com server4.example.com ]
Failed Resource Actions:
* lvmlockd_monitor_30000 on server4.example.com 'not running' (7): call=29, status='complete', exitreason='', last-rc-change='2021-01-05 21:48:25 +09:00', queued=0ms, exec=0ms
* lvmlockd_monitor_30000 on server3.example.com 'not running' (7): call=14, status='complete', exitreason='', last-rc-change='2021-01-05 21:47:54 +09:00', queued=0ms, exec=0ms
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
[root@server3 ~]# df -Th
Filesystem Type Size Used Avail Use% Mounted on
devtmpfs devtmpfs 443M 0 443M 0% /dev
tmpfs tmpfs 471M 48M 424M 10% /dev/shm
tmpfs tmpfs 471M 7.0M 464M 2% /run
tmpfs tmpfs 471M 0 471M 0% /sys/fs/cgroup
/dev/mapper/cl-root xfs 92G 6.0G 86G 7% /
/dev/mapper/cl-home xfs 5.0G 69M 5.0G 2% /home
/dev/sda1 ext4 976M 236M 674M 26% /boot
tmpfs tmpfs 95M 0 95M 0% /run/user/0
/dev/mapper/svg-lv0 gfs2 1016M 19M 998M 2% /gfs2
아래 증상
[root@server3 ~]# pcs status
.....
Failed Resource Actions:
* lvmlockd_monitor_30000 on server4.example.com 'not running' (7): call=29, status='complete', exitreason='', last-rc-change='2021-01-05 21:48:25 +09:00', queued=0ms, exec=0ms
* lvmlockd_monitor_30000 on server3.example.com 'not running' (7): call=14, status='complete', exitreason='', last-rc-change='2021-01-05 21:47:54 +09:00', queued=0ms, exec=0ms
.....
해결책 //lvm.conf 문제로 lvmlockd가 start에서 fail나기 때문 (server3, server4 둘 다 확인)
[root@server3 ~]# vi /etc/lvm/lvm.conf //컨피그 enable함
locking_type = 1
use_lvmlockd = 1
[root@server3 ~]# systemctl start lvmlockd //데몬 시작
[root@server3 ~]# pcs resource cleanup //로그 삭제
Cleaned up all resources on all nodes
Waiting for 2 replies from the controller.. OK
확인
[root@server3 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server4.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 21:55:46 2021
* Last change: Tue Jan 5 21:55:34 2021 by hacluster via crmd on server4.example.com
* 2 nodes configured
* 8 resource instances configured
Node List:
* Online: [ server3.example.com server4.example.com ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Started: [ server3.example.com server4.example.com ]
* Clone Set: shared_vg1-clone [shared_vg1]:
* Started: [ server3.example.com server4.example.com ]
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
##############################################################
################ SERVER 4 세팅 #############################
[root@server4 ~]# yum install yum-utils
[root@server4 ~]# yumdownloader --source dlm
[root@server4 ~]# yum -y install rpm-build libxml2-devel systemd-devel glibc-kernheaders gcc make
[root@server4 ~]# dnf config-manager --set-enabled ha
[root@server4 ~]# dnf -y install pacemaker fence-agents-all gfs2-utils pcp-zeroconf corosynclib-devel pacemaker-libs-devel
[root@server4 ~]# rpmbuild --rebuild dlm-4.0.9-3.el8.src.rpm
[root@server4 ~]# rpm -ivh /root/rpmbuild/RPMS/x86_64/dlm-4.0.9-3.el8.x86_64.rpm --nodeps
[root@server4 ~]# dnf repolist
repo id repo name
appstream CentOS Linux 8 - AppStream
baseos CentOS Linux 8 - BaseOS
epel Extra Packages for Enterprise Linux 8 - x86_64
epel-modular Extra Packages for Enterprise Linux Modular 8 - x86_64
extras CentOS Linux 8 - Extras
ha CentOS Linux 8 - HighAvailability
powertools CentOS Linux 8 - PowerTools
[root@server4 ~]# passwd hacluster
Changing password for user hacluster.
New password:
BAD PASSWORD: The password contains the user name in some form
Retype new password:
passwd: all authentication tokens updated successfully.
[root@server4 ~]# dnf -y install pcs
[root@server4 ~]# systemctl start pcsd
[root@server4 ~]# systemctl enable pcsd
[root@server4 ~]# firewall-cmd --permanent --zone=public --add-port=2224/tcp
[root@server4 ~]# firewall-cmd --permanent --zone=public --add-port=5405/udp
[root@server4 ~]# firewall-cmd --permanent --zone=public --add-service=high-availability
[root@server4 ~]# firewall-cmd --reload
[root@server4 ~]# vi /etc/hosts
192.168.10.210 server2.example.com
192.168.10.220 server3.example.com
192.168.10.230 server4.example.com
[root@server4 ~]# pcs status corosync
Membership information
----------------------
Nodeid Votes Name
1 1 server3.example.com
2 1 server4.example.com (local)
[root@server4 ~]# systemctl enable pacemaker
[root@server4 ~]# systemctl enable corosync
[root@server4 ~]# dnf -y isntall lvm2-lockd gfs2-utils
[root@server4 ~]# systemctl enable dlm
[root@server4 ~]# systemctl start dlm
[root@server4 ~]# vi /etc/lvm/lvm.conf
locking_type = 1
use_lvmlockd = 1
[root@server4 ~]# systemctl enable lvmlockd
[root@server4 ~]# systemctl start lvmlockd
---------------------------------------
iscsi 세팅
[root@server4 ~]# dnf -y install iscsi-initiator-utils
[root@server4 ~]# vi /etc/iscsi/initiatorname.iscsi
InitiatorName=iqn.2021-01.com.example.server3:server3
InitiatorName=iqn.2021-01.com.example.server4:server4
[root@server4 ~]# systemctl restart iscsid
[root@server4 ~]# systemctl enable iscsid
[root@server4 ~]# iscsiadm -m discovery -t st -p 192.168.10.210
[root@server4 ~]# iscsiadm -m node -T iqn.2021-01.com.example.server2:disk1 -p 192.168.10.210:3260 -l
server4에서만 적용할 것 vgcreate --lock-start (server3번에 참고)
[root@server4 ~]# mkdir /gfs2
[root@server4 ~]# systemctl start lvmlockd
[root@server4 ~]# systemctl status lvmlockd
● lvmlockd.service - LVM lock daemon
Loaded: loaded (/usr/lib/systemd/system/lvmlockd.service; enabled; vendor preset: disabled)
Active: active (running) since Tue 2021-01-05 21:53:52 KST; 16s ago
Docs: man:lvmlockd(8)
Main PID: 48248 (lvmlockd)
Tasks: 3 (limit: 5665)
Memory: 2.5M
CGroup: /system.slice/lvmlockd.service
└─48248 /usr/sbin/lvmlockd --foreground
Jan 05 21:53:52 server4.example.com systemd[1]: Starting LVM lock daemon...
Jan 05 21:53:52 server4.example.com lvmlockd[48248]: [D] creating /run/lvm/lvmlockd.socket
Jan 05 21:53:52 server4.example.com lvmlockd[48248]: Socket /run/lvm/lvmlockd.socket already in use
Jan 05 21:53:52 server4.example.com lvmlockd[48248]: 1609851232 lvmlockd started
Jan 05 21:53:52 server4.example.com systemd[1]: Started LVM lock daemon.
[root@server4 ~]#
[root@server4 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server4.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 21:56:06 2021
* Last change: Tue Jan 5 21:55:34 2021 by hacluster via crmd on server4.example.com
* 2 nodes configured
* 8 resource instances configured
Node List:
* Online: [ server3.example.com server4.example.com ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Started: [ server3.example.com server4.example.com ]
* Clone Set: shared_vg1-clone [shared_vg1]:
* Started: [ server3.example.com server4.example.com ]
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
[root@server4 ~]#
[root@server4 ~]# df -Th
Filesystem Type Size Used Avail Use% Mounted on
devtmpfs devtmpfs 443M 0 443M 0% /dev
tmpfs tmpfs 471M 63M 409M 14% /dev/shm
tmpfs tmpfs 471M 7.0M 464M 2% /run
tmpfs tmpfs 471M 0 471M 0% /sys/fs/cgroup
/dev/mapper/cl-root xfs 92G 6.1G 86G 7% /
/dev/mapper/cl-home xfs 5.0G 69M 5.0G 2% /home
/dev/sda1 ext4 976M 236M 674M 26% /boot
tmpfs tmpfs 95M 0 95M 0% /run/user/0
/dev/mapper/svg-lv0 gfs2 1016M 19M 998M 2% /gfs2
###############################################
############### TEST ######################
##############################################
테스트 하기
server 4 reboot
[root@server4 ~]# touch /gfs2/file{1..5}
[root@server4 ~]# ls -l /gfs2/
total 40
-rw-r--r--. 1 root root 0 Jan 5 22:25 file1
-rw-r--r--. 1 root root 0 Jan 5 22:25 file2
-rw-r--r--. 1 root root 0 Jan 5 22:25 file3
-rw-r--r--. 1 root root 0 Jan 5 22:25 file4
-rw-r--r--. 1 root root 0 Jan 5 22:25 file5
[root@server4 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server4.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 22:25:52 2021
* Last change: Tue Jan 5 21:55:34 2021 by hacluster via crmd on server4.example.com
* 2 nodes configured
* 8 resource instances configured
Node List:
* Online: [ server3.example.com server4.example.com ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Started: [ server3.example.com server4.example.com ]
* Clone Set: shared_vg1-clone [shared_vg1]:
* Started: [ server3.example.com server4.example.com ]
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
여기서 리붓
[root@server4 ~]# reboot
서버3 확인 (여기서는 계속 디렉토리 무중단 사용 가능 확인)
[root@server3 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server4.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 22:26:24 2021
* Last change: Tue Jan 5 21:55:34 2021 by hacluster via crmd on server4.example.com
* 2 nodes configured
* 8 resource instances configured
Node List:
* Online: [ server3.example.com server4.example.com ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Resource Group: locking:0:
* dlm (ocf::pacemaker:controld): Stopping server4.example.com
* lvmlockd (ocf::heartbeat:lvmlockd): Stopped
* Started: [ server3.example.com ]
* Clone Set: shared_vg1-clone [shared_vg1]:
* Started: [ server3.example.com ]
* Stopped: [ server4.example.com ]
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
[root@server3 ~]# df -Th
Filesystem Type Size Used Avail Use% Mounted on
devtmpfs devtmpfs 443M 0 443M 0% /dev
tmpfs tmpfs 471M 48M 424M 10% /dev/shm
tmpfs tmpfs 471M 7.0M 464M 2% /run
tmpfs tmpfs 471M 0 471M 0% /sys/fs/cgroup
/dev/mapper/cl-root xfs 92G 6.0G 86G 7% /
/dev/mapper/cl-home xfs 5.0G 69M 5.0G 2% /home
/dev/sda1 ext4 976M 236M 674M 26% /boot
tmpfs tmpfs 95M 0 95M 0% /run/user/0
/dev/mapper/svg-lv0 gfs2 1016M 19M 998M 2% /gfs2
[root@server3 ~]# ls -l /gfs2
total 40
-rw-r--r--. 1 root root 0 Jan 5 22:25 file1
-rw-r--r--. 1 root root 0 Jan 5 22:25 file2
-rw-r--r--. 1 root root 0 Jan 5 22:25 file3
-rw-r--r--. 1 root root 0 Jan 5 22:25 file4
-rw-r--r--. 1 root root 0 Jan 5 22:25 file5
[root@server3 ~]#
[root@server3 ~]#
[root@server3 ~]#
[root@server3 ~]# touch /gfs2/file{5..10}
[root@server3 ~]#
[root@server3 ~]#
[root@server3 ~]# ls -l /gfs2/
total 80
-rw-r--r--. 1 root root 0 Jan 5 22:25 file1
-rw-r--r--. 1 root root 0 Jan 5 22:27 file10
-rw-r--r--. 1 root root 0 Jan 5 22:25 file2
-rw-r--r--. 1 root root 0 Jan 5 22:25 file3
-rw-r--r--. 1 root root 0 Jan 5 22:25 file4
-rw-r--r--. 1 root root 0 Jan 5 22:27 file5
-rw-r--r--. 1 root root 0 Jan 5 22:27 file6
-rw-r--r--. 1 root root 0 Jan 5 22:27 file7
-rw-r--r--. 1 root root 0 Jan 5 22:27 file8
-rw-r--r--. 1 root root 0 Jan 5 22:27 file9
[root@server3 ~]#
########################################################
################ 복구하기 #########################
#######################################################
복구하기
server3에서 server4 장애 확인 (server4가 rebooting 되었으니깐)
[root@server3 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server4.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 22:29:15 2021
* Last change: Tue Jan 5 21:55:34 2021 by hacluster via crmd on server4.example.com
* 2 nodes configured
* 8 resource instances configured (1 BLOCKED from further action due to failure)
Node List:
* Online: [ server3.example.com server4.example.com ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Resource Group: locking:0:
* dlm (ocf::pacemaker:controld): FAILED server4.example.com (blocked)
* lvmlockd (ocf::heartbeat:lvmlockd): Stopped
* Started: [ server3.example.com ]
* Clone Set: shared_vg1-clone [shared_vg1]:
* Started: [ server3.example.com ]
* Stopped: [ server4.example.com ]
Failed Resource Actions:
* dlm_stop_0 on server4.example.com 'error' (1): call=68, status='Timed Out', exitreason='', last-rc-change='2021-01-05 22:26:22 +09:00', queued=0ms, exec=100003ms
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
[root@server3 ~]# pcs status --full
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server4.example.com (2) (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 22:30:34 2021
* Last change: Tue Jan 5 21:55:34 2021 by hacluster via crmd on server4.example.com
* 2 nodes configured
* 8 resource instances configured (1 BLOCKED from further action due to failure)
Node List:
* Online: [ server3.example.com (1) server4.example.com (2) ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Resource Group: locking:0:
* dlm (ocf::pacemaker:controld): FAILED server4.example.com (blocked)
* lvmlockd (ocf::heartbeat:lvmlockd): Stopped
* Resource Group: locking:1:
* dlm (ocf::pacemaker:controld): Started server3.example.com
* lvmlockd (ocf::heartbeat:lvmlockd): Started server3.example.com
* Clone Set: shared_vg1-clone [shared_vg1]:
* Resource Group: shared_vg1:0:
* sharedlv1 (ocf::heartbeat:LVM-activate): Started server3.example.com
* sharedfs1 (ocf::heartbeat:Filesystem): Started server3.example.com
* Resource Group: shared_vg1:1:
* sharedlv1 (ocf::heartbeat:LVM-activate): Stopped
* sharedfs1 (ocf::heartbeat:Filesystem): Stopped
Migration Summary:
* Node: server4.example.com (2):
* dlm: migration-threshold=1000000 fail-count=1000000 last-failure='Tue Jan 5 22:28:02 2021'
Failed Resource Actions:
* dlm_stop_0 on server4.example.com 'error' (1): call=68, status='Timed Out', exitreason='', last-rc-change='2021-01-05 22:26:22 +09:00', queued=0ms, exec=100003ms
Tickets:
PCSD Status:
server3.example.com: Online
server4.example.com: Offline
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
server4를 메인터넌스 모드로 변경 (안하면 server4가 안올라옴 계속 loading(빙글빙글) 표시만 나옴 접속안됨, login도 안나옴)
maintenance 모드로 변경 하자마자 server4가 rebooting 되면서 ssh접속이됨, console에서 login 나옴
[root@server3 ~]# pcs node maintenance server4.example.com
[root@server3 ~]#
[root@server3 ~]#
[root@server3 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server3.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 22:32:08 2021
* Last change: Tue Jan 5 22:32:01 2021 by root via cibadmin on server3.example.com
* 2 nodes configured
* 8 resource instances configured
Node List:
* Node server4.example.com: OFFLINE (maintenance)
* Online: [ server3.example.com ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Started: [ server3.example.com ]
* Stopped: [ server4.example.com ]
* Clone Set: shared_vg1-clone [shared_vg1]:
* Started: [ server3.example.com ]
* Stopped: [ server4.example.com ]
Failed Fencing Actions:
* reboot of server4.example.com failed: delegate=, client=stonith-api.60589, origin=server3.example.com, last-failed='2021-01-05 22:32:07 +09:00'
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
[root@server3 ~]#
#################################
로그인 되면 server 4 복구시킴##########
################################
[root@server4 ~]# pcs status
Error: error running crm_mon, is pacemaker running?
Could not connect to the CIB: Transport endpoint is not connected
crm_mon: Error: cluster is not available on this node
[root@server4 ~]# systemctl status pcsd
● pcsd.service - PCS GUI and remote configuration interface
Loaded: loaded (/usr/lib/systemd/system/pcsd.service; enabled; vendor preset: disabled)
Active: inactive (dead)
Docs: man:pcsd(8)
man:pcs(8)
[root@server4 ~]# systemctl start pcsd
[root@server4 ~]# systemctl status pcsd
● pcsd.service - PCS GUI and remote configuration interface
Loaded: loaded (/usr/lib/systemd/system/pcsd.service; enabled; vendor preset: disabled)
Active: active (running) since Tue 2021-01-05 22:35:04 KST; 5s ago
Docs: man:pcsd(8)
man:pcs(8)
Main PID: 3928 (pcsd)
Tasks: 1 (limit: 5665)
Memory: 38.3M
CGroup: /system.slice/pcsd.service
└─3928 /usr/libexec/platform-python -Es /usr/sbin/pcsd
[root@server4 ~]# pcs cluster sync
server3.example.com: Succeeded
server4.example.com: Succeeded
[root@server4 ~]# pcs cluster start server4.example.com
server4.example.com: Starting Cluster...
[root@server4 ~]# corosync-cfgtool -s
Printing link status.
Local node ID 2
LINK ID 0
addr = 192.168.10.230
status:
nodeid 1: link enabled:1 link connected:1
nodeid 2: link enabled:1 link connected:1
[root@server4 ~]# systemctl status pacemaker
● pacemaker.service - Pacemaker High Availability Cluster Manager
Loaded: loaded (/usr/lib/systemd/system/pacemaker.service; enabled; vendor preset: disabled)
Active: active (running) since Tue 2021-01-05 22:36:35 KST; 27s ago
Docs: man:pacemakerd
https://clusterlabs.org/pacemaker/doc/en-US/Pacemaker/2.0/html-single/Pacemaker_Explained/index.html
Main PID: 4571 (pacemakerd)
Tasks: 7
Memory: 40.9M
CGroup: /system.slice/pacemaker.service
├─4571 /usr/sbin/pacemakerd -f
├─4572 /usr/libexec/pacemaker/pacemaker-based
├─4573 /usr/libexec/pacemaker/pacemaker-fenced
├─4574 /usr/libexec/pacemaker/pacemaker-execd
├─4575 /usr/libexec/pacemaker/pacemaker-attrd
├─4576 /usr/libexec/pacemaker/pacemaker-schedulerd
└─4577 /usr/libexec/pacemaker/pacemaker-controld
Jan 05 22:36:36 server4.example.com pacemaker-controld[4577]: notice: Node server3.example.com state is now member
Jan 05 22:36:36 server4.example.com pacemaker-controld[4577]: notice: Node server4.example.com state is now member
Jan 05 22:36:36 server4.example.com pacemaker-controld[4577]: notice: Pacemaker controller successfully started and accepting connections
Jan 05 22:36:36 server4.example.com pacemaker-controld[4577]: notice: State transition S_STARTING -> S_PENDING
Jan 05 22:36:37 server4.example.com pacemaker-controld[4577]: notice: Fencer successfully connected
Jan 05 22:36:37 server4.example.com pacemaker-controld[4577]: notice: State transition S_PENDING -> S_NOT_DC
Jan 05 22:36:39 server4.example.com pacemaker-controld[4577]: notice: Result of probe operation for dlm on server4.example.com: not running
Jan 05 22:36:39 server4.example.com pacemaker-controld[4577]: notice: Result of probe operation for lvmlockd on server4.example.com: ok
Jan 05 22:36:39 server4.example.com pacemaker-controld[4577]: notice: Result of probe operation for sharedlv1 on server4.example.com: not running
Jan 05 22:36:39 server4.example.com pacemaker-controld[4577]: notice: Result of probe operation for sharedfs1 on server4.example.com: not running
[root@server4 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server3.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 22:37:12 2021
* Last change: Tue Jan 5 22:32:01 2021 by root via cibadmin on server3.example.com
* 2 nodes configured
* 8 resource instances configured
Node List:
* Node server4.example.com: maintenance
* Online: [ server3.example.com ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Resource Group: locking:0:
* dlm (ocf::pacemaker:controld): Stopped
* lvmlockd (ocf::heartbeat:lvmlockd): Started server4.example.com (unmanaged)
* Started: [ server3.example.com ]
* Clone Set: shared_vg1-clone [shared_vg1]:
* Started: [ server3.example.com ]
* Stopped: [ server4.example.com ]
Failed Fencing Actions:
* reboot of server4.example.com failed: delegate=, client=stonith-api.63365, origin=server3.example.com, last-failed='2021-01-05 22:37:12 +09:00'
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
[root@server4 ~]# systemctl start dlm
[root@server4 ~]# systemctl status dlm
● dlm.service - dlm control daemon
Loaded: loaded (/usr/lib/systemd/system/dlm.service; enabled; vendor preset: disabled)
Active: active (running) since Tue 2021-01-05 22:38:14 KST; 5s ago
Process: 5340 ExecStartPre=/sbin/modprobe dlm (code=exited, status=0/SUCCESS)
Main PID: 5341 (dlm_controld)
Tasks: 3 (limit: 5665)
Memory: 4.9M
CGroup: /system.slice/dlm.service
├─5341 /usr/sbin/dlm_controld --foreground
└─5343 /usr/sbin/dlm_controld --foreground
Jan 05 22:38:14 server4.example.com systemd[1]: Starting dlm control daemon...
Jan 05 22:38:14 server4.example.com dlm_controld[5341]: 334 dlm_controld 4.0.9 started
Jan 05 22:38:14 server4.example.com systemd[1]: Started dlm control daemon.
확인
[root@server4 ~]# systemctl status dlm
[root@server4 ~]# systemctl status pacemaker
[root@server4 ~]# systemctl status corosync
[root@server4 ~]# systemctl status lvmlockd
history clean 하면 fail로그는 삭제됨
[root@server4 ~]# pcs stonith history cleanup
cleaning up fencing-history for node *
[root@server4 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server3.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 22:41:14 2021
* Last change: Tue Jan 5 22:32:01 2021 by root via cibadmin on server3.example.com
* 2 nodes configured
* 8 resource instances configured
Node List:
* Node server4.example.com: maintenance
* Online: [ server3.example.com ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Resource Group: locking:0:
* dlm (ocf::pacemaker:controld): Stopped
* lvmlockd (ocf::heartbeat:lvmlockd): Started server4.example.com (unmanaged)
* Started: [ server3.example.com ]
* Clone Set: shared_vg1-clone [shared_vg1]:
* Started: [ server3.example.com ]
* Stopped: [ server4.example.com ]
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
[root@server4 ~]# pcs resource cleanup
Cleaned up all resources on all nodes
server4 메인터넌스 모드 해제하자 마자 다시 shared 볼륨이 다시 연결됨
[root@server4 ~]# pcs node unmaintenance server4.example.com
[root@server4 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server3.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 22:43:23 2021
* Last change: Tue Jan 5 22:43:19 2021 by root via cibadmin on server4.example.com
* 2 nodes configured
* 8 resource instances configured
Node List:
* Online: [ server3.example.com server4.example.com ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Started: [ server3.example.com server4.example.com ]
* Clone Set: shared_vg1-clone [shared_vg1]:
* Resource Group: shared_vg1:0:
* sharedlv1 (ocf::heartbeat:LVM-activate): Starting server4.example.com
* sharedfs1 (ocf::heartbeat:Filesystem): Stopped
* Started: [ server3.example.com ]
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
[root@server4 ~]#
[root@server4 ~]# pcs status
Cluster name: cluster
Cluster Summary:
* Stack: corosync
* Current DC: server3.example.com (version 2.0.4-6.el8-2deceaa3ae) - partition with quorum
* Last updated: Tue Jan 5 22:43:40 2021
* Last change: Tue Jan 5 22:43:19 2021 by root via cibadmin on server4.example.com
* 2 nodes configured
* 8 resource instances configured
Node List:
* Online: [ server3.example.com server4.example.com ]
Full List of Resources:
* Clone Set: locking-clone [locking]:
* Started: [ server3.example.com server4.example.com ]
* Clone Set: shared_vg1-clone [shared_vg1]:
* Started: [ server3.example.com server4.example.com ]
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
[root@server4 ~]#
[root@server4 ~]# df -Th
Filesystem Type Size Used Avail Use% Mounted on
devtmpfs devtmpfs 443M 0 443M 0% /dev
tmpfs tmpfs 471M 51M 421M 11% /dev/shm
tmpfs tmpfs 471M 7.0M 464M 2% /run
tmpfs tmpfs 471M 0 471M 0% /sys/fs/cgroup
/dev/mapper/cl-root xfs 92G 6.0G 86G 7% /
/dev/mapper/cl-home xfs 5.0G 69M 5.0G 2% /home
/dev/sda1 ext4 976M 236M 674M 26% /boot
tmpfs tmpfs 95M 0 95M 0% /run/user/0
/dev/mapper/svg-lv0 gfs2 1016M 19M 998M 2% /gfs2
[root@server4 ~]# ls -l /gfs2
total 80
-rw-r--r--. 1 root root 0 Jan 5 22:25 file1
-rw-r--r--. 1 root root 0 Jan 5 22:27 file10
-rw-r--r--. 1 root root 0 Jan 5 22:25 file2
-rw-r--r--. 1 root root 0 Jan 5 22:25 file3
-rw-r--r--. 1 root root 0 Jan 5 22:25 file4
-rw-r--r--. 1 root root 0 Jan 5 22:27 file5
-rw-r--r--. 1 root root 0 Jan 5 22:27 file6
-rw-r--r--. 1 root root 0 Jan 5 22:27 file7
-rw-r--r--. 1 root root 0 Jan 5 22:27 file8
-rw-r--r--. 1 root root 0 Jan 5 22:27 file9
[root@server4 ~]#
참조
www.slideshare.net/ienvyou/rhel7centos7-pacemakerhav10
[오픈소스컨설팅]RHEL7/CentOS7 Pacemaker기반-HA시스템구성-v1.0
리눅스 pacemaker 기반의 High Availaiblity 구성방법에 대해 설명합니다. pacemaker를 사용하는 다른 리눅스 기반도 구성이 가능합니다. Pacemaker 기반 Linux High Availability 입문용으로는 적합하지 않을 수 있
www.slideshare.net
www.headdesk.me/Redhat_Cluster_on_EL7/8#Build_dlm_package_on_CentOS_8
Redhat Cluster on EL7/8 - www.headdesk.me
Red Hat Cluster on RHEL7 / CentOS 7 / CentOS 8 This is sometimes known as Pacemaker cluster. What you need to setup it up: At least 2 servers 2x NIC, bonded for application use 2x NIC, bonded for corosync use (this was known as heartbeat in previous versio
www.headdesk.me
manpages.ubuntu.com/manpages/bionic/man8/lvmlockd.8.html
Ubuntu Manpage: lvmlockd — LVM locking daemon
Powered by the Ubuntu Manpage Repository, file bugs in Launchpad © 2019 Canonical Ltd. Ubuntu and Canonical are registered trademarks of Canonical Ltd.
manpages.ubuntu.com
Chapter 7. GFS2 file systems in a cluster Red Hat Enterprise Linux 8 | Red Hat Customer Portal
The Red Hat Customer Portal delivers the knowledge, expertise, and guidance available through your Red Hat subscription.
access.redhat.com
www.golinuxcloud.com/setup-high-availability-cluster-centos-8/
10 easy steps to setup High Availability Cluster CentOS 8 | GoLinuxCloud
Step-by-Step Guide to setup Linux High Availability Cluster in CentOS 8 using system_id_source uname. Configure pacemaker, corosync and linux HA cluster.
www.golinuxcloud.com
'linux' 카테고리의 다른 글
| centos teaming - lacp (0) | 2021.01.06 |
|---|---|
| centos 8 - gluster (0) | 2021.01.06 |
| centos 8 - drbd 설치 (0) | 2021.01.04 |
| centos 8 - pacemaker (0) | 2021.01.03 |
| centos - keepalived (링크 이중화 vrrp) (0) | 2021.01.03 |
